Ekman Cluster Specifications

Knowing the specs of the cluster is important, as it allows you to carefully balance your computation and to choose the right partition (or “queue”) for the calculation you have to perform.

Specs Sheet

• Name: Ekman

• Operating System: = 3.10.0-1160.el7.x86_64 GNU/Linux

• Scheduler: SLURM 19.05.3

• Nodes:

  • 1 x Login Node (sail.msk.ru -p 2240) configured as:

    • Model: ASUS RS700-E10-RS4U

    • CPU: * 56 x Intel(R) Xeon(R) Gold 6348 CPU @ 2.60GHz, 28 cores per socket × 2 sockets * Total: 112 logical CPUs (threads) as Hyper-Threading is enbaled on the login node.

    • RAM: 256 GiB

    • Swap: 8 GiB

    • Disk: 2 × 894 GiB SSDs in RAID1

      • ~100 GiB for /home

      • ~789 GiB for root /

  • 34 x Compute Nodes in total: see the Partition section.

  • 1 x GPU node:

    • CPU: 176 x Intel(R) Xeon(R) Gold 6348 CPU @ 2.60GHz * Each node has 2 sockets × 44 cores × 2 threads per core (Hyper-Threading enabled), totaling 176 logical CPUs.

    • GPU: * 2 × NVIDIA H100 (14592 CUDA cores each, 80 GiB HBM2e memory per card) * Total: 29184 CUDA cores

• Disk:

  • Filesystem: Lustre

• Storage

  • /storage/ekman Large-volume storage based on SAS drives. This is the default storage for general-purpose data and compute tasks.

  • /storage/scratch Fast SSD-based storage intended for temporary high-performance tasks. Files older than 3 months are automatically deleted. Recommended for jobs running on the rack1 partition to benefit from local high-speed interconnects.

  • /storage/kubrick, /storage/tartar, /storage/thalassa Network file systems (NFS). These storages are not suitable for direct compute jobs, but they are available for storing or accessing large datasets.

  • !!! Storage Policy !!!

  • Each user is automatically provided with a dedicated directory under every listed storage path (e.g. /storage/ekman/username, /storage/scratch/username, etc.). All work must be done inside your personal directory within these storage locations.

  • (!!!) Do not run jobs or store data in your $HOME directory — it is not designed for I/O-heavy operations or scratch data.

Partitions

The partitions (queues) are then organized as follows; note that you can get detailed information about a partition via the command scontrol show Partition=<name>.

Max resources you can ask for each partition.

Partition	Nodes	Cores per Node	Max Time	Max Memory (GB)	Processor	Max Threads
rack1	14	76	30-00:00:00	258	Platinum	1064
broadwellr2	15	32	30-00:00:00	257	Xeon E5	480
r2c2	14	48	30-00:00:00	192	Xeon Gold	672
knl	2	72	30-00:00:00	193	Phi 7290	144
gpu	1	2×NVIDIA H100	30-00:00:00	80	NVIDIA Gen5	29184

Note

• Max Threads includes logical (Hyper-Threaded) CPUs when enabled.

• GPU “cores and threads” reflect CUDA cores — not traditional CPU threads.

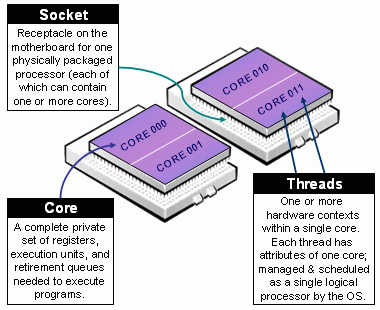

Definitions of Socket, Core, & Thread from SLURM’s documentation.
